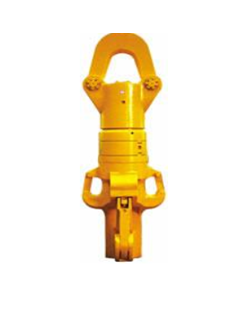

Current Location：Home > Products Center > DRILLINGRIG COMPONENTS > Travelling Block and HookTravelling Block and Hook
  2. Traveling Block and HookBelong to DRILLINGRIG COMPONENTS
  3. Enquire online
  4. Hot line0838-8225066

  (API 8C)


Technical Specification: (API 8C)

 Model

YC170

YC225

YC315

YC450

YC675

Max. Load KN

1700

2250

3150

4500

6750

Gear Number

5

5

6

6

7

Gear Diameter mm

915

1120

1270

1524

1524

 Rope Diameter

29

29.32

32.35

35.38

45

Dimensions (Lx Wx H), mm

2000×1004×630

2294×1190×630

2580×1350×800

3075×1600×800

3010×1600×980

Approximate Weight  kg

2700

3800

6800

8100

9700
